AT-1600 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Model |
AT-1600 | |
|
video Signnal |
Support NTSC & PAL Standards (Auto Selection) | |
|
Operating System |
Embedded Linux | |
|
Pentaplex Function |
Simultaneous Live / Record / Playback / Network / Backup | |
|
Video |
Input Out |
16 |
|
1 Composite (BNC), 1 VGA | ||
|
|
3BNC(Spot) | |
|
Loop Out |
16 | |
|
Display |
Speed |
NTSC: 480fps / PAL: 400fps |
|
Screen |
1/4/7/9/10/13/16 | |
|
Video Compression |
Enhanced MPEG-4 | |
|
Recording |
Speed |
NTSC: CIF(480fps), HVGA(240fps),
VGA(120fps) |
|
Resolution |
NTSC: CIF(360x240), HVGA(720x240),
VGA(720x480) | |
|
Serial Interface |
RS-485, RS-232C (PTZ, Keyboard, POS) | |
|
System Control |
PC Mouse, Key Buttons, IR Remote Controller, Keyboard Controller, Client PC | |
|
Alam |
In / Out |
16 / 4 |
|
Audio Channels |
4 channel (16 channel, option) | |
|
Display Settings |
Brightness, Contrast, Color Adjustments, Hidden/Covert Per Channel | |
|
Camera Title |
13 Characters per Channel | |
|
Recording Modes |
Continuous, Schedule, Alarm, Motion, Overwrite | |
|
Recording Adjustments |
3 Levels of Resolution / Recording Frame Rate Adjustment Per Channel | |
|
Motion Detection Per Channel |
294 Selectable Grids / 5 Sensitivity Levels | |
|
Search Modes |
Time & Date, Camera, Motion, Alarm, Video Loss | |
|
Playback Modes |
Forward & Reverse: Pause, Field by Field, Normal Speed, 2x, 4x, 8x, 16x, Panorama, Motion | |
|
Power Failure Recovery |
Auto Reboot while Maintaining Previous Status | |
|
Alarm Notification |
Automatic E-mail | |
|
System Utility |
3-Level Password | |
|
Internal Backup Device |
CD-RW or DVD-RW | |
|
External Backup Device |
USB2.0: Memory Stick, External HDD | |
|
Mini-player for Backup |
Installing dedicated software into PC is not required to playback files from CD or DVD | |
|
Communication Port |
USB2.0, RS-232C, RS-42/485, 10 / 100 / 1000Mbps Ethernet | |
|
Storage Capacity |
1 x SATA CD(DVD)-RW, 3 x SATA HDDs(Up to 1.5TB) | |
|
Network |
LAN, WAN, Internet, PSTN, GIGA Ethernet | |
|
External Modem Support |
RS232C | |
|
Remote Client Software |
Multi-site / Enterprise Level Client Software or Web Browser | |
|
Dimensions |
440(W) x 430(D) x 78(H) : 2U Rack Mount Kit | |
|
Weight |
8kg | |
|
Power |
120W, 90~264 VAC (47Hz~63Hz) | |
|
Operating Temperature |
0 ~ 40°C | |
|

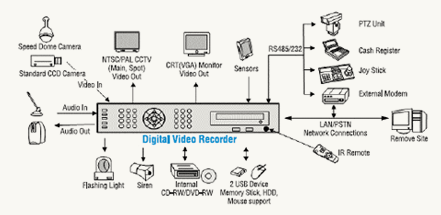

System Configuration
|
